Triton 分類推論輸出轉成可讀性類別名稱

前言

分類模型輸出如果要轉成人類可讀性的文字類別，在 Triton Server 端模型庫中添加類別名稱文件即可，本篇將舉 Fashion MNIST 為例。
詳細 Triton Inference Server 的功能可參考此文章。

範例

Server

系統環境

OS：Ubuntu 20.04
GPU Driver：450.119.04
Docker：19.03.14
Docker Image：nvcr.io/nvidia/tritonserver:21.05-py3

訓練模型

import tensorflow as tf

train_images = train_images / 255.0
test_images = test_images / 255.0

model = tf.keras.Sequential([
    tf.keras.layers.Flatten(input_shape=(28, 28)),
    tf.keras.layers.Dense(128, activation='relu'),
    tf.keras.layers.Dense(10)
])

model.compile(optimizer='adam',
              loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
              metrics=['accuracy'])

model.fit(train_images, train_labels, epochs=10)

model.save('model.savedmodel')

編輯設定檔

name: "fashion"
platform: "tensorflow_savedmodel"
max_batch_size: 32
input [
    {
        name: "flatten_input"
        data_type: TYPE_FP32
        dims: [28, 28]
    }
]
output [
    {
        name: "dense_1"
        data_type: TYPE_FP32
        dims: [10]
        label_filename: "labels.txt"
    }
]
instance_group [
    {
        kind: KIND_GPU
        count: 2
    }
]

optimization { execution_accelerators {
    gpu_execution_accelerator : [ {
        name : "tensorrt"
        parameters { key: "precision_mode" value: "FP16" }}]
}}

version_policy { latest { num_versions: 1 } }

dynamic_batching {
  preferred_batch_size: [ 4, 8 ]
  max_queue_delay_microseconds: 100
}

編輯類別名稱檔

檔名要跟模型設定檔裡面設的一樣，如此範例設為 labels.txt

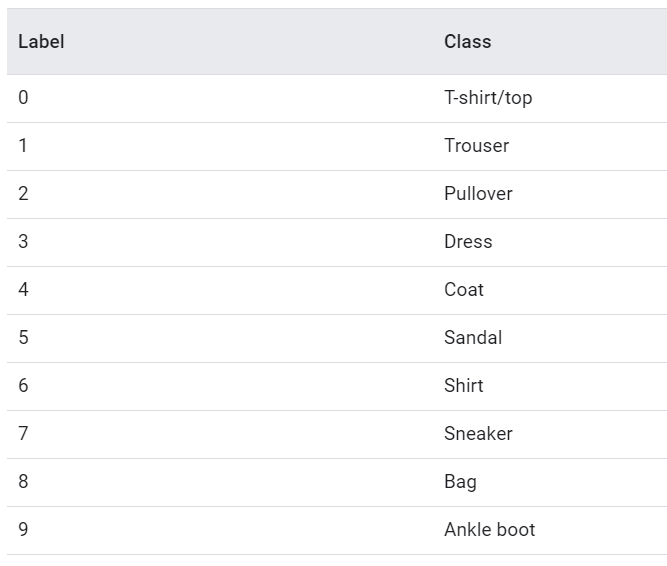

請依照當初訓練時，分類的順序依序填入

T-shirt/top
Trouser
Pullover
Dress
Coat
Sandal
Shirt
Sneaker
Bag
Ankle boot

建立模型庫

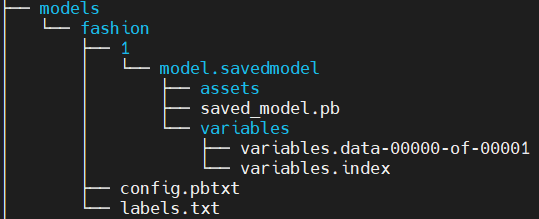

檔案架構如下圖

運行伺服器端

sudo docker run -d --gpus all --name Triton_Server --shm-size=1g --ulimit memlock=-1 --ulimit stack=67108864 -p 8000:8000 -p 8001:8001 -p 8002:8002 -v /home/user/Documents/models:/models nvcr.io/nvidia/tritonserver:21.05-py3 tritonserver --model-store=/models

Client

系統環境

OS：Ubuntu 20.04
GPU Driver：450.119.04
Docker：19.03.14
Docker Image：nvcr.io/nvidia/tritonserver:21.05-py3-sdk

撰寫程式碼

from PIL import Image
import numpy as np
import tritonclient.grpc as grpcclient
from tritonclient.utils import triton_to_np_dtype
from tritonclient import utils

## 前處理
img = Image.open('input.JPG').convert('L')
img = img.resize((28, 28))
imgArr = np.asarray(img)/255
imgArr = np.expand_dims(imgArr, axis=0)
imgArr= imgArr.astype(triton_to_np_dtype('FP32'))

## Client-Server 溝通
triton_client = grpcclient.InferenceServerClient(url='localhost:8001', verbose=0)
inputs = []
inputs.append(grpcclient.InferInput('flatten_input', imgArr.shape, 'FP32'))
inputs[0].set_data_from_numpy(imgArr)
outputs = []
outputs.append(grpcclient.InferRequestedOutput('dense_1',class_count=10))
responses = []
responses.append(triton_client.infer('fashion',inputs,
                    request_id=str(1),
                    model_version='1',
                    outputs=outputs))

## 後處理
print (responses[0].as_numpy("dense_1")[0][0])
